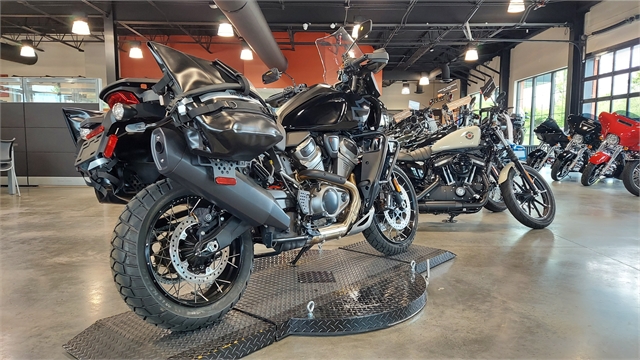

2023 Harley-Davidson Touring Pan America 1250 Special
Stock #305793
2023 Harley-Davidson Adventure Touring Pan America 1250 Special
RA1250S
VIVID BLACK
The Pan America 1250 Special motorcycle is our premier two-wheel multi-tool built to endure, designed to explore, and engineered for adventure.
- Upright riding position
- Mid-mount foot controls
- Passenger seat
- Tall
- Frame mounted fairing
- Rider safety enhancements available
OVERVIEW
- Enthusiasts who require top-of-the-line comfort and performance
- For riders who see touring as detouring – on road and off
- Riders looking for power, tech, and capability – that can be used everyday with comfort and control
- Status:New
- Vehicle:2023 Harley-Davidson Touring Pan America 1250 Special
- VIN:1HD1ZES13PB305793
- Model Number:RA1250S
- Mileage:5 miles
- Color:Vivid Black
- Stock Number:305793
- Title:Clear
- Location:Keystone Harley-Davidson
- Warranty:Manufacturer's w/ Extended Available
AUDIO & COMMUNICATION
- Bluetooth® Audio:Yes
- Mobile App Instrumentation:Yes
BRAKES
- Front Brake Type:Dual Hydraulic Disc
- Rear Brake Type:Hydraulic Disc
CONVENIENCE
- Engine Immobilizer Brand:Digitally Encoded Security System™ (DESS)
- Heated Hand Grip Location:Driver
ENGINE
- Bore (in):4.13
- Bore (mm):105
- CAN Liters Per Kilometer (Combined):5.1
- Carburetion Type:Fuel Injected
- Compression Ratio:13
- Cooling:Liquid
- Cylinders:2
- Displacement (cc):1252
- Displacement (ci):76.4
- Engine Brand Name:Revolution® Max
- Engine Stroke:4-Stroke
- Engine Type:V Twin
- Fuel Injector:Yes
- Fuel Requirements:Regular
- Fuel Type:Gas
- Horsepower (bhp):150
- Horsepower (kW):112
- Horsepower RPM:9000
- Starter:Electric
- Stroke (in):2.84
- Stroke (mm):72.3
- Torque (Ft Lbs):94
- Torque (Nm):127
- Torque RPM:6750
- US Miles Per Gallon (Combined):46
- Valve Configuration:DOHC
EXTERIOR
- Brush Guard:Yes
- Chain Guard:Yes
- Engine Case Guard:Yes
- Foot Peg Location:Driver and Passenger
- Fork Guards:Yes
- Frame:Steel
- Hand Guards:Yes
- Light Guard:Yes
- Stand Type:Center
GLASS
- Folding:Yes
- Height Adjustable:Yes
- Height:High
- Tinted:Yes
INSTRUMENTATION
- Fuel Level Warning Type:Gauge
- Temperature Warning Type:Light
LIGHTS
- Type:LED
SEATS
- Number Of Seats:2
- Seat Location:Driver and Passenger
- Seat Type:Two-Piece
STEERING
- Steering Control:Handlebar
SUSPENSION
- Front Adjustable Fork Pre-Load:Yes
- Front Adjustable Rebound Damping:Yes
- Front Suspension Brand Name:Showa® BFF
- Front Suspension Size (in):47
- Front Suspension Size (mm):1193.8
- Front Suspension Type:Inverted Fork
- Front Travel (in):7.5
- Front Travel (mm):190
- Number Rear Shock Absorbers:1
- Rear Adjustable Rebound Damping:Yes
- Rear Adjustable Shock / Spring Pre-Load:Yes
- Rear Suspension Brand Name:Showa® BFRC
- Rear Suspension Type:Twin Sided Swing Arm
- Steering Damper:Yes
TECHNICAL SPECIFICATIONS
- Dry Weight (kg):242
- Dry Weight (lbs):534
- Engine Displacement to Weight (cc):2.37
- Fuel Capacity (gal):5.6
- Fuel Capacity (l):21.2
- Ground Clearance (in):6.9
- Ground Clearance (mm):175.3
- Length (ft):7.45
- Length (ft/ft):7
- Length (ft/in):5.4
- Length (in):89.4
- Length (mm):2270
- Wet Weight (kg):258
- Wet Weight (lbs):569
- Wheelbase (in):62.4
- Wheelbase (mm):1585
TRANSMISSION
- Gear Ratio (1):13.11
- Gear Ratio (2):9.687
- Gear Ratio (3):7.509
- Gear Ratio (4):6.057
- Gear Ratio (5):5.08
- Gear Ratio (6):4.436
- Number Of Speeds:6
- Primary Drive (Rear Wheel):Chain
- Transmission Type:Manual
WHEELS & TIRES
- Front Tire (Full Spec):Michelin® Scorcher™ Adventure 120/70 R19 60V
- Front Tire Aspect Ratio:70
- Front Tire Speed Rating:V
- Front Tire Width:120
- Front Wheel Diameter:19
- Rear Tire (Full Spec):Michelin® Scorcher™ Adventure 170/60 R17 72V
- Rear Tire Aspect Ratio:60
- Rear Tire Speed Rating:V
- Rear Tire Width:170
- Rear Wheel Diameter:17
- Tire Brand:Michelin®
- Tube / Tubeless:Tubed
- Wheels Composition:Aluminum
